| Model | ZL38-31 | ||||||||
| Working Voltage Range | DC：6-24V | ||||||||
| Rating Power | 6V：2-12W / 12V：3-18W / 24V：5-25W | ||||||||
| Static Water Head | 2-6M | ||||||||
| Static flow rate | 2-4Litre / minute | ||||||||
| Lifespan | Continuous operation under normal working condition ≤ 24 hours, service life＞20000hour | ||||||||
| Working Environment | Applicable liquid pH: weak acid, neutral, weak base. Non diving use | ||||||||
| Max Noise | Normal working condition, the water pump is 1 meter away from the tester<40dB | ||||||||
| Max Working Temperature | Under normal temperature environment, the temperature of the aqueous medium≤70℃ | ||||||||
| Application | Pipeline hot water circulation, solar water heater, small fountain, aquarium, etc | ||||||||

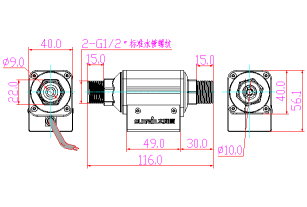

| Size | IP Grade | Inlet | Outlet | Remarks | |||||
| Length (mm) | Width (mm) | Height (mm) | OD (inch) | ID (mm) | OD (inch) | ID (mm) | The inlet and outlet threads are positive rotation Standard threaded pipe | ||
| 56 | 40 | 116 | IP67 | G1/2〞 Standard threaded pipe | φ10 | G1/2〞 Standard threaded pipe | φ9 | ||
Remark: It’s for reference only, the one based on the customer’s endorsement demands shall prevail!
